Brick Cuber




The Brick Cuber can achieve the function of automatic grasping, moving the blocks, stacking the blocks and reseting to its position.





To send inquiries, including feedback, requests for information, or questions, you may use our Feedback and Inquiries form below.



Brick Cuber

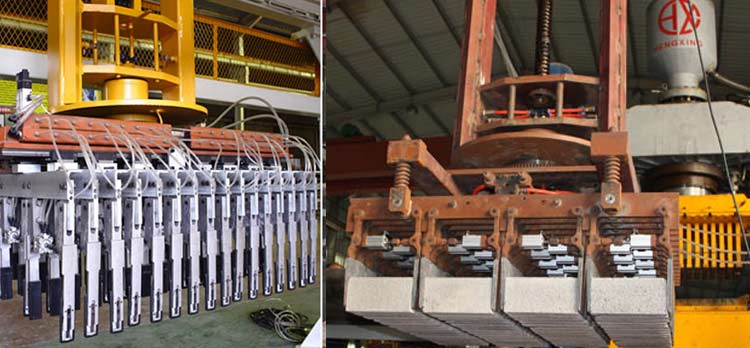

The Brick stacker can achieve the function of automatic grasping, moving the blocks, stacking the blocks and reseting to its position. It can reserve a space between each block when stacking the blocks, so as enable high compressed steam to go through every side of the block easily, the steam curing cycle would be shorted. The grasper can be closed, released and turned accoridng to requirement when moving the block, it will put the block into a cross form, Avoiding the blocks move when stacking

The blocks and the curing car was transporting the blocks. The stacker can grasp different kinds of block only by some simple adjusting. The stacker can achieve the precise positioning of three-diemensional by using phototube and rotary encoder.






The main parameters of M500-44 Brick Cuber



Clamping capacity

44pieces

Machine power

6.2kw

Hoisting height

1250mm

moving stroke

2900mm

Machine weight

3t


















The main parameters of M650-56 Brick Cuber

Clamping capacity

56pieces

Machine power

7kw

Hoisting height

1280mm

moving stroke

3000mm

Machine weight

3.2t


















The main parameters of M800-64 Brick Cuber

Clamping capacity

64pieces

Machine power

8.5kw

Hoisting height

1300mm

moving stroke

3500mm

Machine weight

3.5t
