Concrete Batching Machine

 HPL Series Batching Machine is Automatic batching equipment which suitable for different construcion spotsThe features of the machine is easy operation High automatic level.

It is formed by storing hopper, weighing system, supplying material system, electric control system and etc. Material is supplied by pneumatic strobe and belt conveying.



HPL Series Batching Machine is Automatic batching equipment which suitable for different construcion spotsThe features of the machine is easy operation High automatic level.



It is formed by storing hopper, weighing system, supplying material system, electric control system and etc. Material is supplied by pneumatic strobe and belt conveying.



To send inquiries, including feedback, requests for information, or questions, you may use our Feedback and Inquiries form below.


Model PL800 PL1200
Cubage of weighing hopper 0.8m³ 1.2m³
Cubage of reserve hopper    2×4m³ 3×4m³
Productivity 48m³/h 72m³/h
Batching precision   ±2% ±2%
Max. Metage    1500kg 2000kg
Batching category 2 3
Loading height   2750mm 2750mm
Measurement      Electronic Electronic
Power      6.6kW 11.7kW
Weight   2300kg 4000kg
Dimension(L×W×H)    5656×2245×3079 mm 8486×2245×3079mm



Users can form a simple concrete mixing plant using this aggregate bin in conjunction with the JS500 and JS750 concrete mixers. Our aggregate storage bin is ideal for industrial and civil building projects, small and medium construction sites, and precast concrete factories, in order to produce high quality concrete products. (Bulk cement containers and cement scales can also be installed on the aggregate bin).

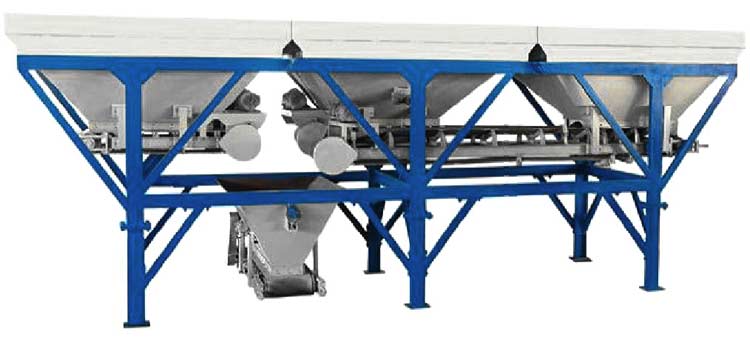

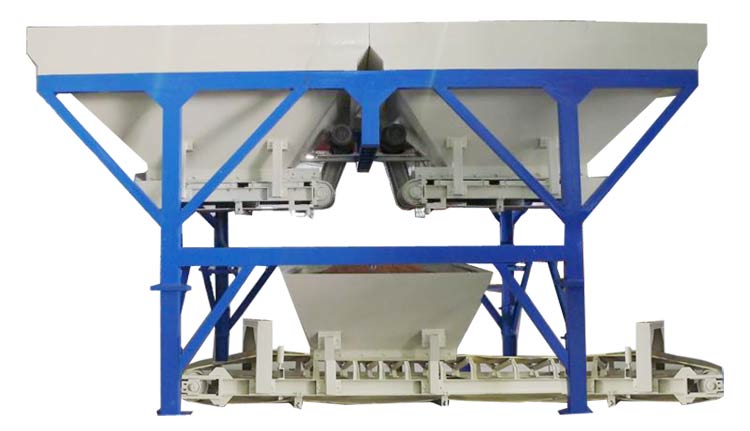

Hengxing supplies two primary types of aggregate batchers: the two-bin concrete batching machine and the three-bin concrete batching machine.
